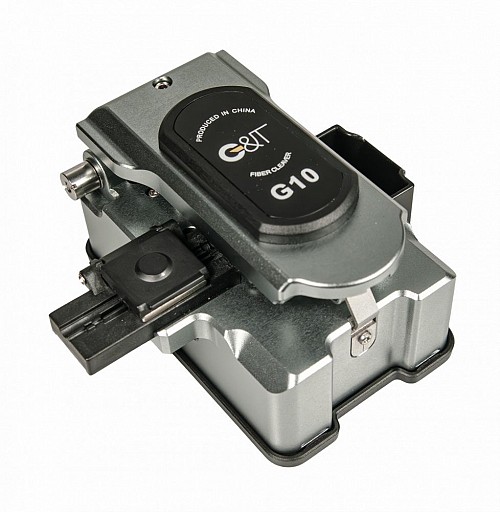

G&T G10 High Precision Fiber Cleaver
Cleaver is an essential tool for every installer who uses fiber optic cables. G&T G10 ensures precise cutting, diameter cutting angle is less than 0.5°.
Using this tool, you can easily prepare the fiber for welding and avoid subsequent problems with centering.

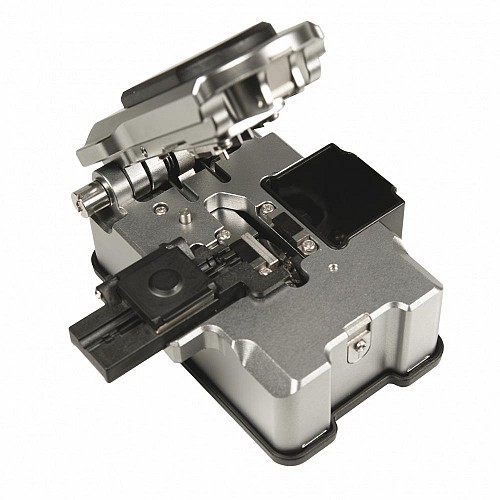

The cutting process is fully automatic and is performed immediately after closing the cover. On the side of the cleaver there is a container for shreds into which the remaining fibers fall. While working, you do not have to manually move the cutting element.
G10 has a replaceable knife with dimensions: 22 mm (diameter) x 4 mm (hole diameter) x 2 mm (height). The service life of the knife is 60,000 cuts. The blade is made of high-quality materials and is characterized by a very long service life.
- Compatible optical fibers: 125 μm
- Cutting length: 5 - 20+ mm
- Cutting angle: ≤ 0,5°
- Blade life: ≥ 60000 cuts
- (1000 cuts * 20 positions * 3 heights)
- Blade type:Diameter: 22 mm-Hole diameter: 4 mm-Height: 2 mm
- Libra: 293 g
- Holder: Universal
