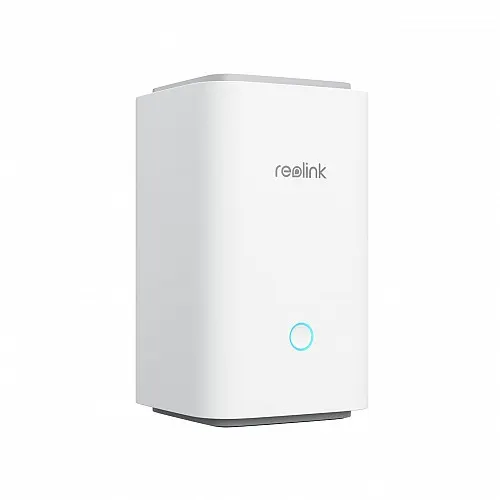

Reolink HUB Home Hub Supports 8 Cameras

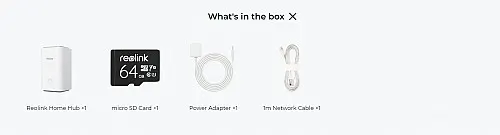

- 64GB microSD Card Included
- Storage Encryption & Privacy Protection
- Expandable System Up to 8 Reolink Cams
- No Monthly Fees
Get more control over your data with Reolink Home Hub. With an included 64GB microSD card and expandable up to 2×512GB with two microSD card slots, you have the ultimate storage flexibility. Compared to Cloud storage, this hub keeps your recordings and privacy fully protected locally at no potential risk or additional cost.
Supercharge your security system management with the Reolink Home Hub. Supporting up to 16MP ultra-high definition and up to 8 Reolink cameras, including dual-band Wi-Fi cameras and Wi-Fi 6 cameras, it offers great flexibility to customize your security center to match your preferences.
* Reolink Home Hub Series products are currently compatible with all Reolink PoE cameras, Plug-in Wi-Fi cameras, and most recently released battery Wi-Fi cameras except 2MP battery cameras and 4G cameras.
Device Management
- Camera : Up to 8 cameras
- Device Compatibility : All Reolink Wi-Fi/PoE cameras (Battery cameras require a firmware upgrade)
- Safety Protection : Account access and sharing options for individual devices are only available through Home Hub

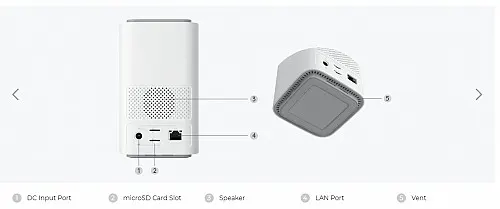

Input/Output
- HDMI : NO
- USB : NO

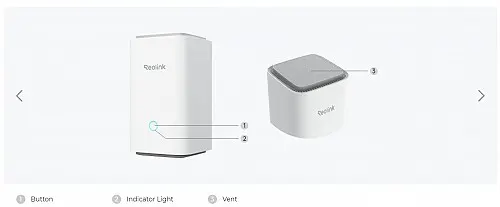

- Reset Button : YES
- Power : DC 12V/1A
- Speaker : YES (Max. 115dB)
- Ethernet : 1*10M/100M bit RJ45 port for WAN
Storage
- SATA : NO
- microSD Card Slot : Up to 512GB*2
- Backup Media : NO
- Storage Encryption : Protect privacy and prevent theft with AES-128 encryption algorithm
Preview & Playback
- Live View : APP, PC Client
- Playback : Smart playback/event history
Wi-Fi
- Wireless Standard : IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
- Operating Frequency : 2.4/5 GHz
- Wireless Security : WPA/WPA2/WPA3
Sub-1 GHz
- Operating Frequency : 868/915MHz
System
- Network Protocols : TCP/IP, UDP, DHCP, P2P, UPNP, RTSP,RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access : 11 users (1 admin account & 10 shared accounts)
- Smart Home : Google Assistant
Working Environment
- Operating Temperature : -10℃~+45℃
- Operating Humidity : 10%~90%
Mechanical
- Dimensions : 95*95*161.8mm
- Weight : 441g
