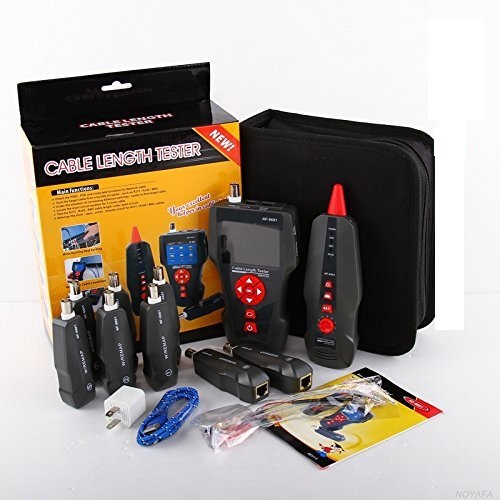

Noyafa NF-8601W Rechargeable Network Tester/Scanner with LCD Screen

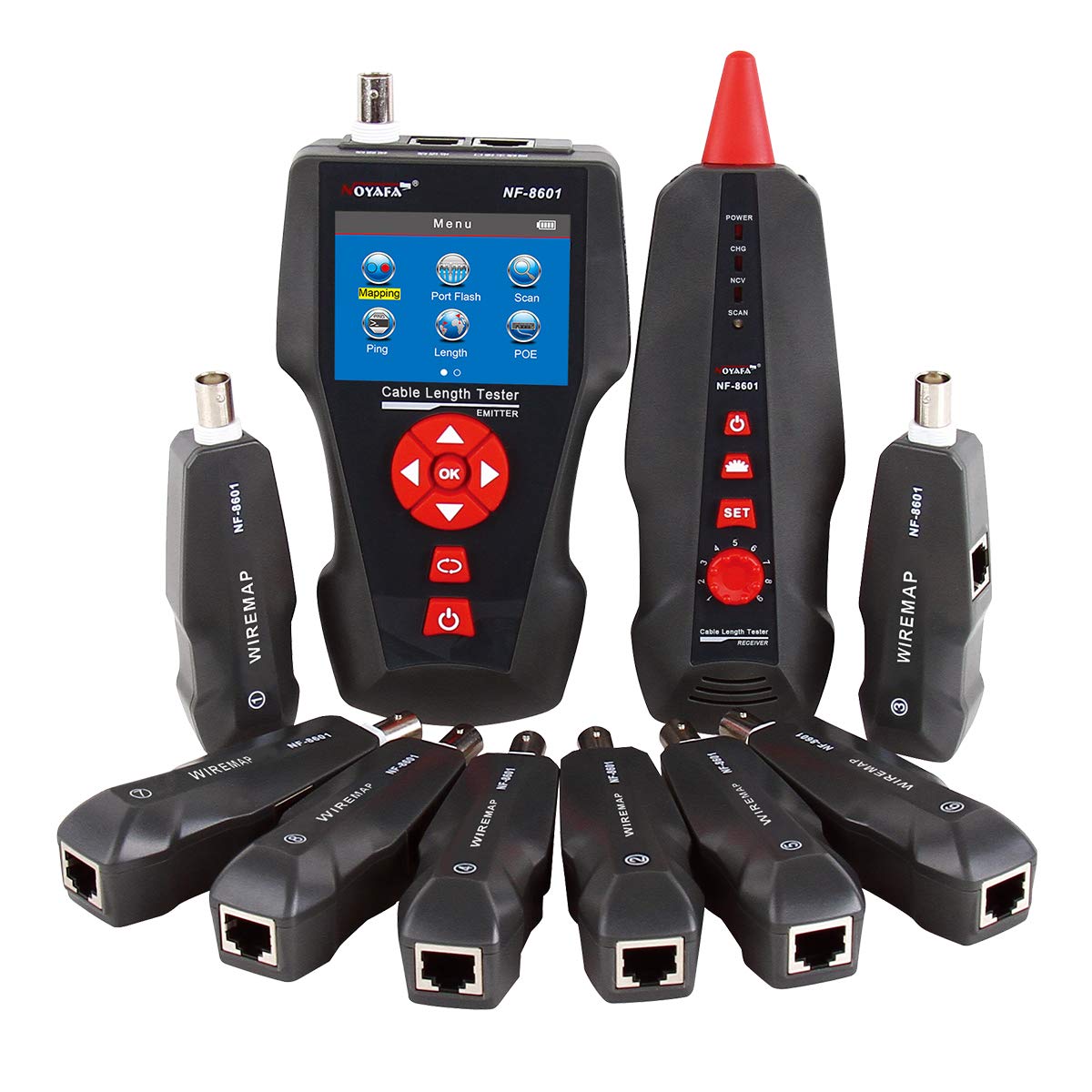

Multi-functional Network Cable Tester with LCD Display and Rechargeable Battery with 8 Remote Identifiers
- Supports RJ45/RJ11/BNC Connectors

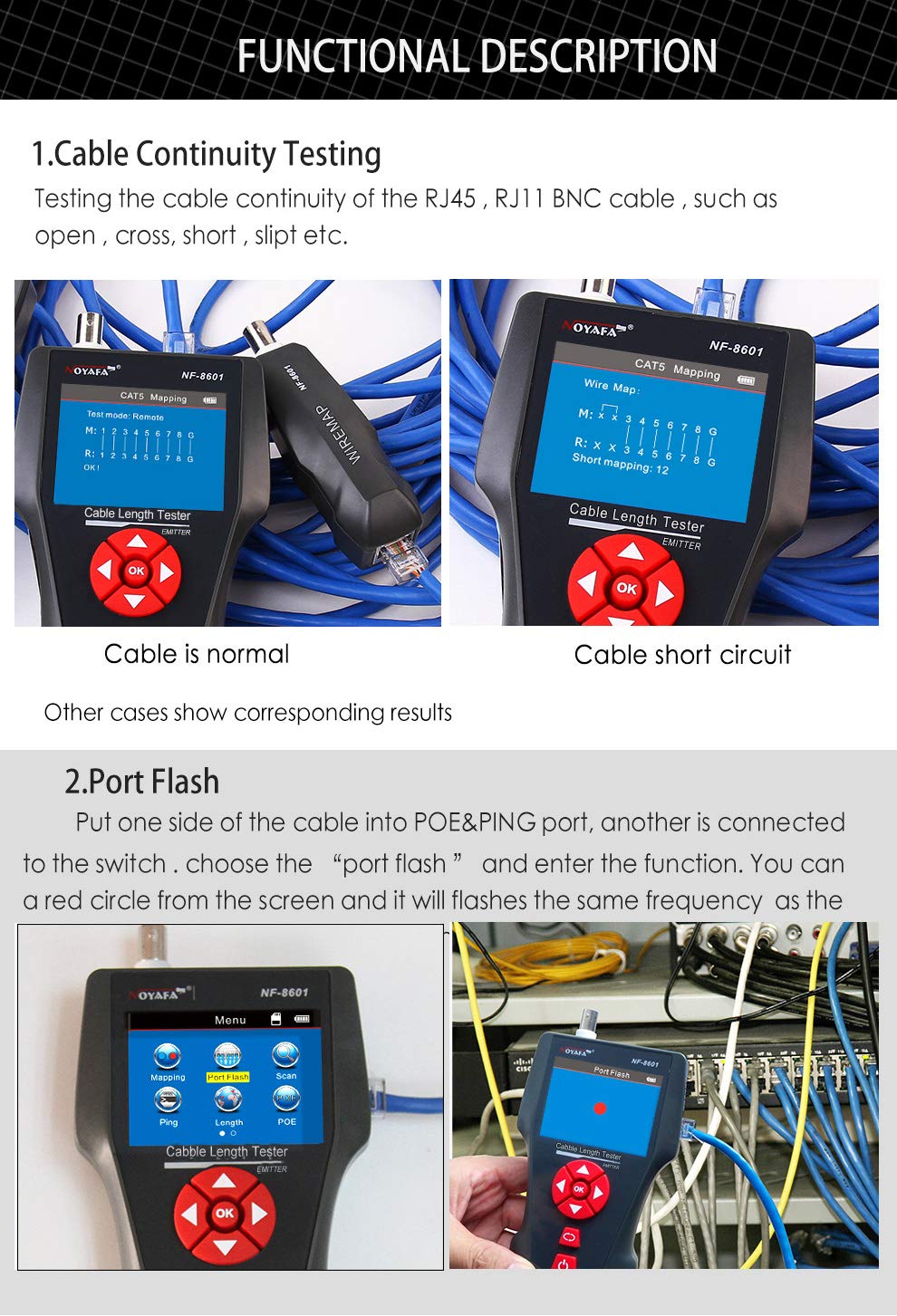

- Checks for Open Circuit, Short Circuit, Cross Connection, Broken Wire

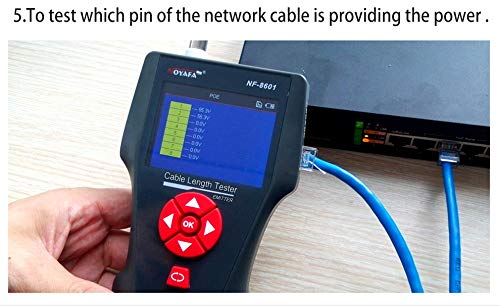

- Detects POE
- ing Function
- Crosstalk Test

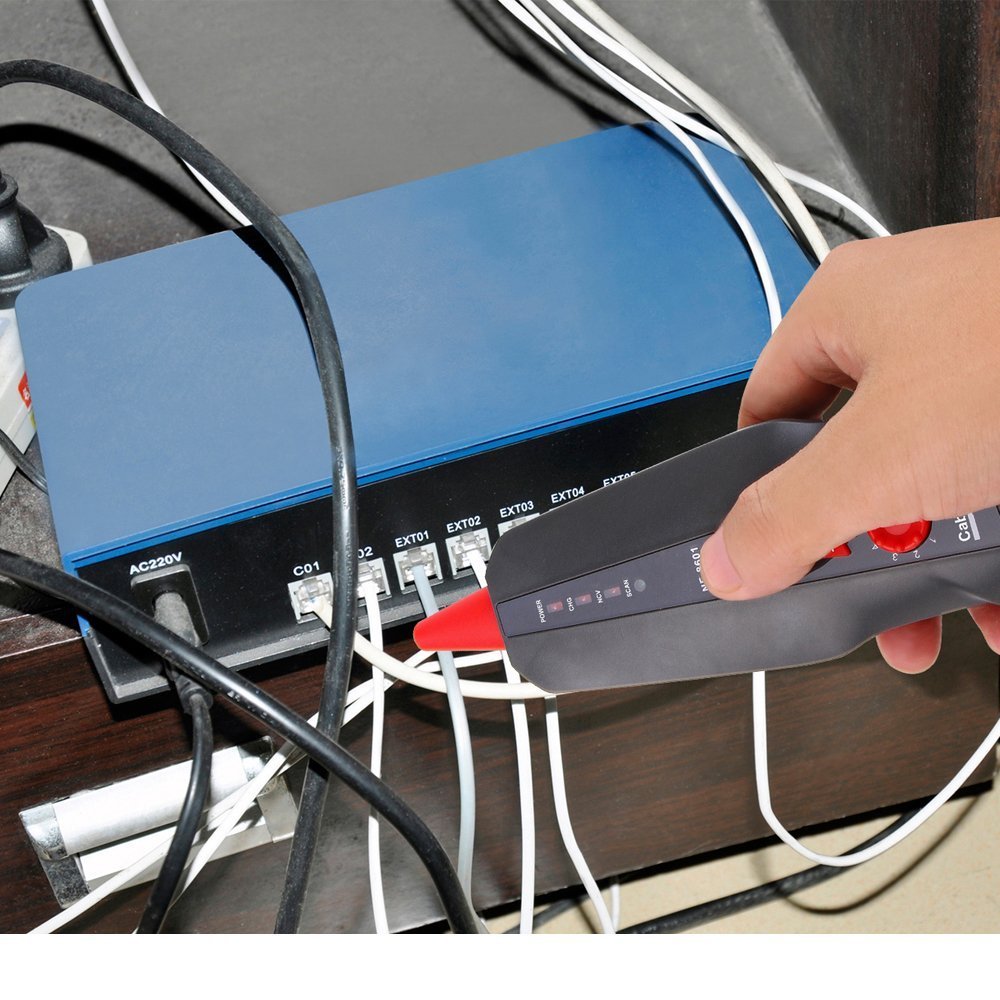

- Traces Cable
- Locate Cable Breakage Position and Cable Short Position
- Measures Cable Length
- Low Voltage Detection Alarm
- Memory and storage function, export or upload the data from PC.

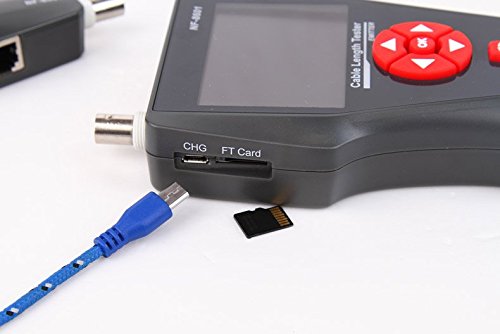

- Built-in Lithium battery and LCD Color Display
Transmitter specifications
- Indicator LCD 320x240 mm, with backlight
- Cable test types STP/UTP 5E,6E network , telephone , coaxial cable
- Max. distance of wiremap 2000 m
- Max. distance of tracing 2000m
- Max. distance of cable length 1000 m
- Min. distance of calibration 10 m
- Accuracy 3% ( after calibration )

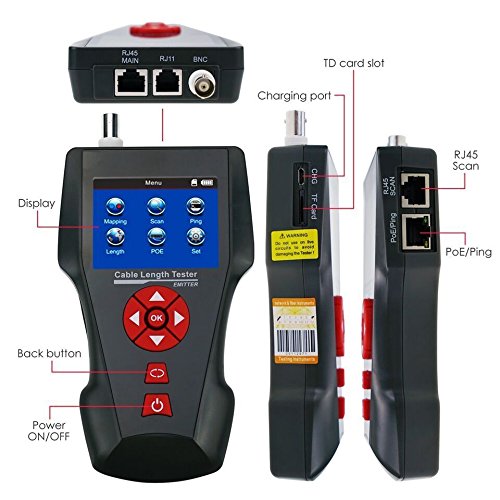

- Compatible connectors RJ11,RJ45 ,BNC, PING/POE
- Cable map indication LCD (#1-#8)
- Battery Type 3.7V lithium battery 1800mAh

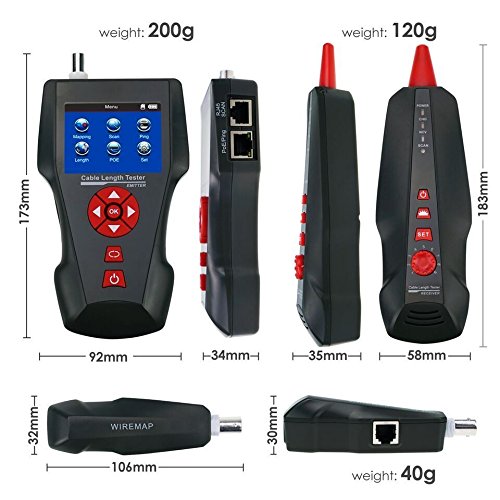

- Dimension(LxWxD) 173x92x34mm
Receiver specifications
- Cable hunting RJ11,RJ45, BNC
- Types of cable ≥ 2 cores
- Battery Type 3.7V lithium battery 1800mAh
- Dimension(LxWxD) 183x58x35 mm
Remote unit specifications
- Compatible connectors RJ11,RJ45, BNC
- Remote 8
- Dimension(LxWxD) 106x32x30mm

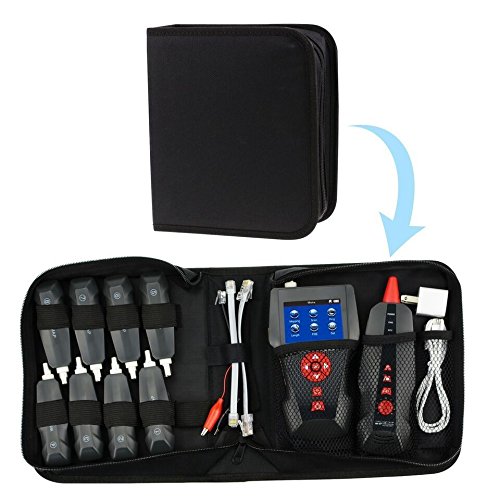

Accessories Included:
- Earphones x 1 set
- 9V Battery x 2 sets
- Telephone line adapter x 1 set
- Network cable adapter x 1 set
- Charging adaptor x 1 set
- Cable clips x 1 set
